Overview

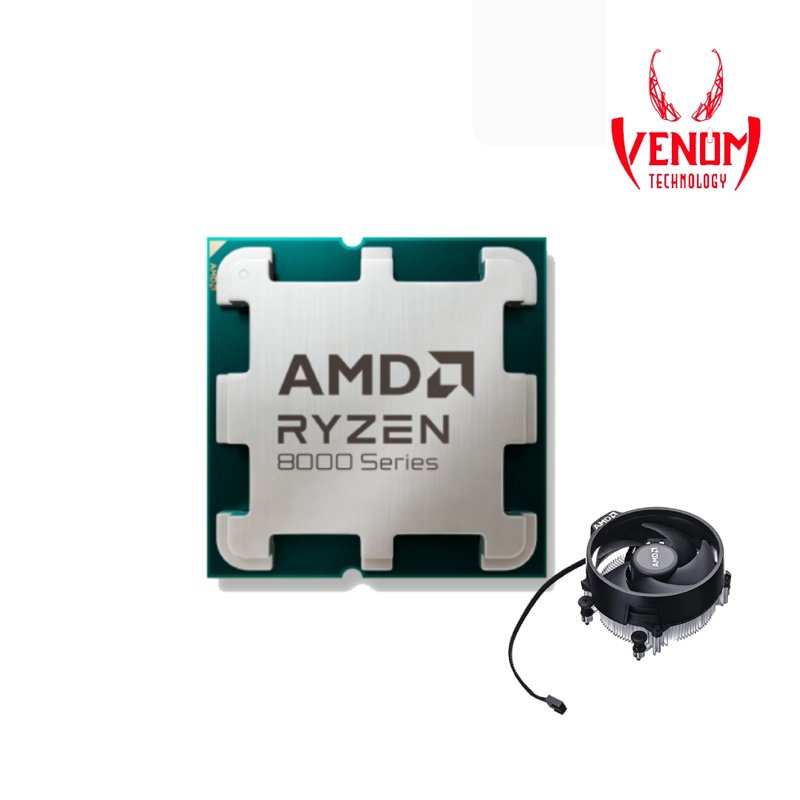

The AMD Ryzen™ 7 8700F is a high-performance CPU from the Ryzen 8000 Series, designed for gamers, content creators, and multitaskers. Built on Zen 4 architecture with TSMC’s 4nm FinFET process, it offers exceptional speed, energy efficiency, and advanced connectivity options.
It comes with a fan tray for out-of-the-box cooling, making it ideal for new PC builds.
Key Features
-
8 Cores / 16 Threads for powerful multitasking and gaming performance.
-
Boost Clock: Up to 5.0 GHz
-
Base Clock: 4.1 GHz
-
Unlocked for Overclocking to push performance even further.
-
65W Default TDP (configurable 45–65W) for efficient power consumption.
-
AMD EXPO™ Memory Overclocking and Precision Boost Overdrive for optimized performance.
-
AMD Ryzen™ Master Support for fine-tuning and system control.
-
Native USB 4 (40Gbps) and PCIe® 4.0 for high-speed connectivity.
-
AM5 Socket Compatibility with a wide range of chipsets: A620, B650, B650E, B840, X670, X670E, X870, X870E.
-
DDR5 Memory Support up to 256GB for ultra-fast performance.
Technical Specifications
| Specification |
Details |
| CPU Family |
AMD Ryzen |
| Series |
Ryzen 8000 Series |
| Architecture |
Zen 4 |
| Cores / Threads |
8 / 16 |
| Base Clock |
4.1 GHz |
| Max Boost Clock |
Up to 5.0 GHz |
| L2 Cache |
8 MB |
| L3 Cache |
16 MB |
| Default TDP |
65W (45–65W configurable) |
| Socket |
AM5 |
| PCIe® Version |
PCIe® 4.0 |
| Memory Type |
DDR5 |
| Max Memory Capacity |
256 GB |
| Max Memory Speeds |
2x1R DDR5-5200, 2x2R DDR5-5200, 4x1R DDR5-3600, 4x2R DDR5-3600 |
| Max Operating Temp (Tjmax) |
95°C |
| Launch Date |
April 1, 2024 |
| Model/SKU |
100-000001590 |
