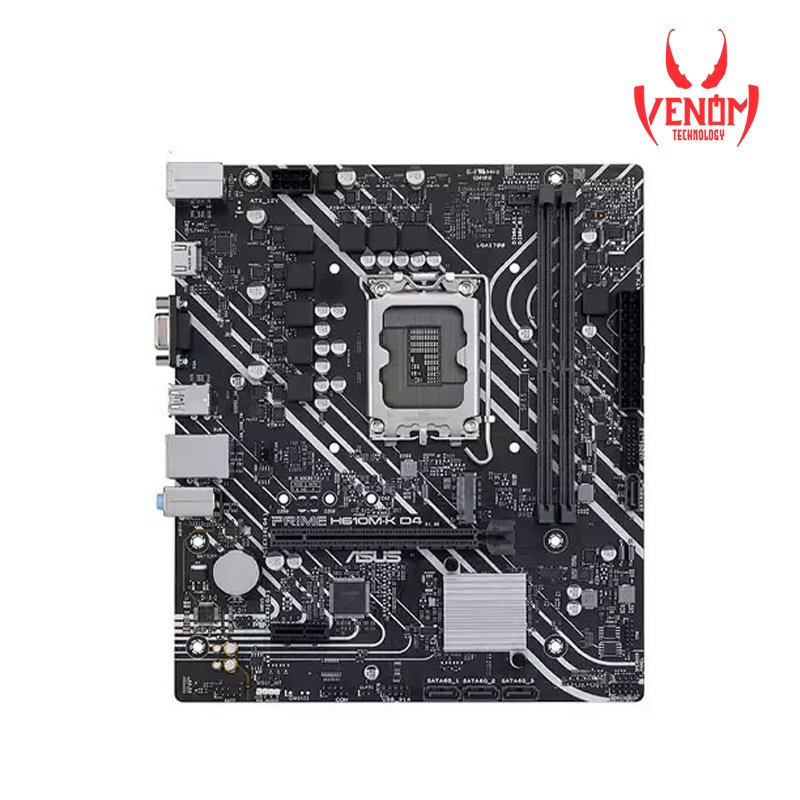

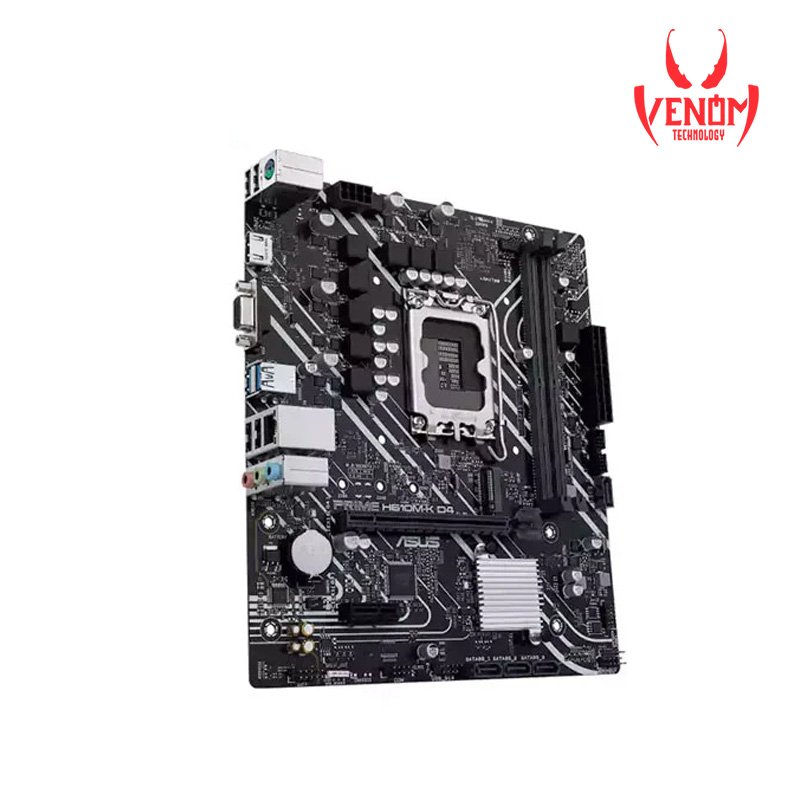

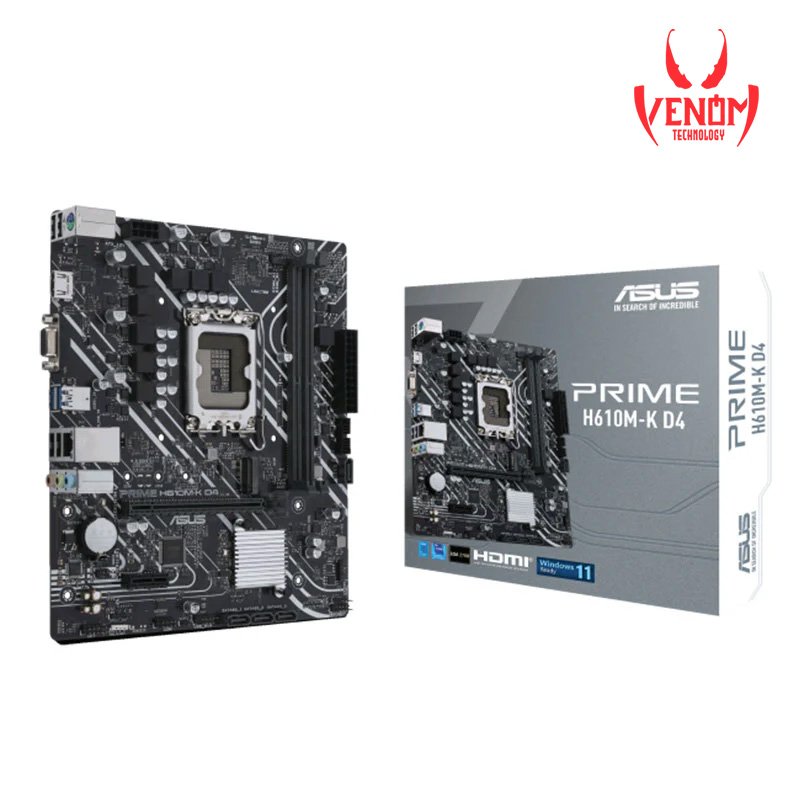

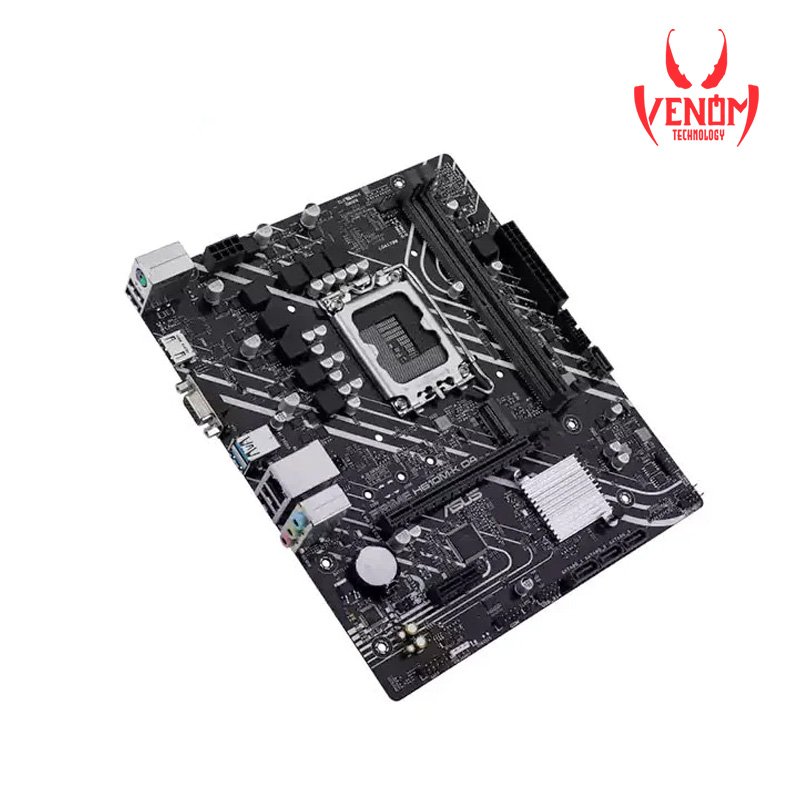

Asus PRIME H610M-K D4 LGA 1700 Motherboard

Asus PRIME H610M-K D4 Intel^® Socket LGA1700 for 12^th Gen Intel^® Core™, Pentium^® Gold and Celeron^® Processors*

Supports Intel^® Turbo Boost Technology 2.0 and Intel^® Turbo Boost Max Technology 3.0**

* Refer to www.asus.com for CPU support list.

** Intel^® Turbo Boost Max Technology 3.0 support depends on the CPU types.

Intel^® H610 Chipset

2 x DIMM, Max. 64GB, DDR4 3200/3000/2933/2800/2666/2400/2133 Non-ECC, Un-buffered Memory*

Dual Channel Memory Architecture

Supports Intel^® Extreme Memory Profile (XMP)

* Actual memory data rate depends on the CPU types and DRAM modules, for more information refer to www.asus.com for memory support list.

1 x D-Sub port

1 x HDMI^® port**

* Graphics specifications may vary between CPU types. Please refer to www.intel.com for any updates.

** Supports 4K@60Hz as specified in HDMI 2.1.

Intel^® 12^th Gen Processors

1 x PCIe 4.0 x16 slot

Intel^® H610 Chipset

1 x PCIe 3.0 x1 slot

Total supports 1 x M.2 slot and 4 x SATA 6Gb/s ports

Intel^® H610 Chipset

M.2 slot (Key M), type 2242/2260/2280 (supports PCIe 3.0 x4 & SATA modes)

4 x SATA 6Gb/s ports

* The M.2 slot shares bandwidth with the SATA6G_4 port. When a device in SATA mode is installed on the M.2 slot, the SATA6G_4 port cannot be used.

1 x Realtek 1Gb Ethernet

Rear USB (Total 6 ports)

2 x USB 3.2 Gen 1 ports (2 x Type-A)

4 x USB 2.0 ports (4 x Type-A)

Front USB (Total 4 ports)

1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports

1 x USB 2.0 header supports additional 2 USB 2.0 ports

Realtek 7.1 Surround Sound High Definition Audio CODEC*

– Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking

– Supports up to 24-Bit/192 kHz playback

Audio Features

– Audio Shielding

– Dedicated audio PCB layers

* A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.

2 x USB 3.2 Gen 1 ports (2 x Type-A)

4 x USB 2.0 ports (4 x Type-A)

D-Sub port

1 x HDMI^® port

1 x Realtek 1Gb Ethernet port

3 x Audio jacks

1 x PS/2 Keyboard/Mouse combo port

Asus PRIME

Fan and Cooling related

1 x 4-pin CPU Fan header

1 x 4-pin Chassis Fan header

Power related

1 x 24-pin Main Power connector

1 x 8-pin +12V Power connector

Storage related

1 x M.2 slot (Key M)

4 x SATA 6Gb/s ports

USB

1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports

1 x USB 2.0 header supports additional 2 USB 2.0 ports

ASUS 5X PROTECTION III

– DIGI+ VRM

– LANGuard

– Overvoltage Protection

– SafeSlot Core

– Stainless-Steel Back I/O

ASUS Q-Design

– Q-DIMM

– Q-Slot

ASUS Thermal Solution

– Aluminum heatsink design

ASUS Lighting Control

– RGB header

ASUS Exclusive Software

Armoury Crate

AI Suite 3

– Performance And Power Saving Utility

TurboV EVO

Asus PRIME

EPU

DIGI+ VRM

Fan Xpert

ASUS CPU-Z

Norton Anti-virus software (Free Trial version)

WinRAR

128 Mb Flash ROM, UEFI AMI BIOS

WOL by PME, PXE

Cables

2 x SATA 6Gb/s cables

Miscellaneous

1 x I/O Shield

1 x M.2 ANCHOR

Asus PRIME

Installation Media

1 x Support DVD

Documentation

1 x User Guide

Windows^® 11 64-bit, Windows^® 10 64-bit

mATX Form Factor

9.2 inch x 8.0 inch ( 23.4 cm x 20.3 cm )
