Msi B550M Pro-Vdh DDR4 Motherboard

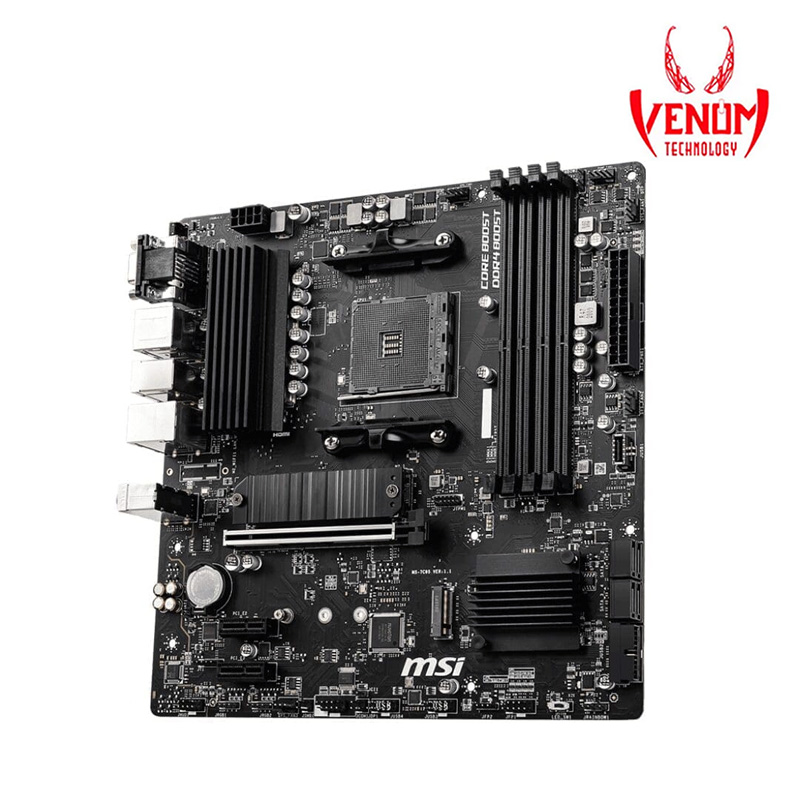

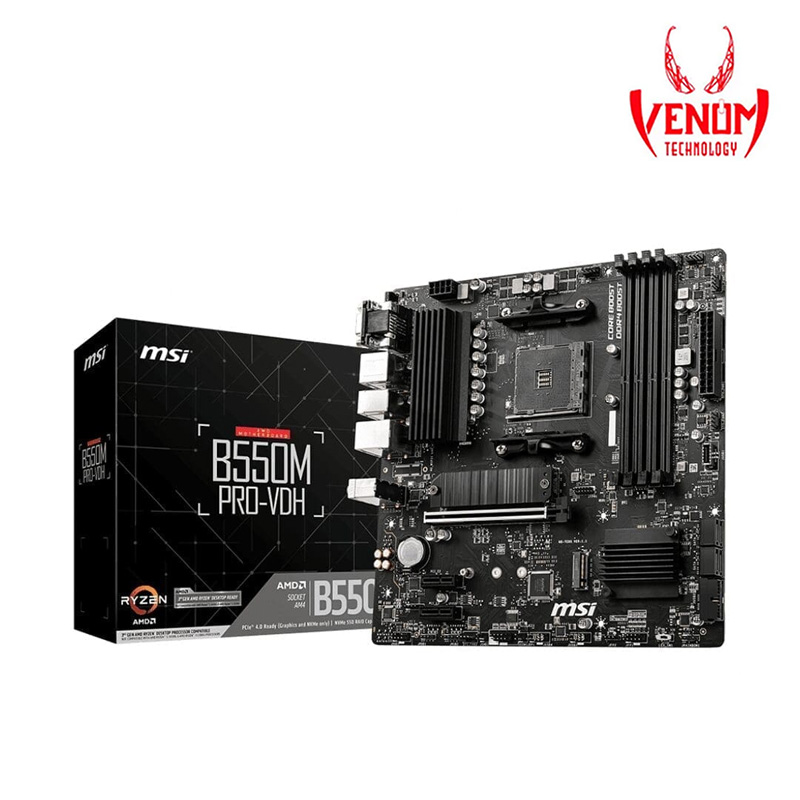

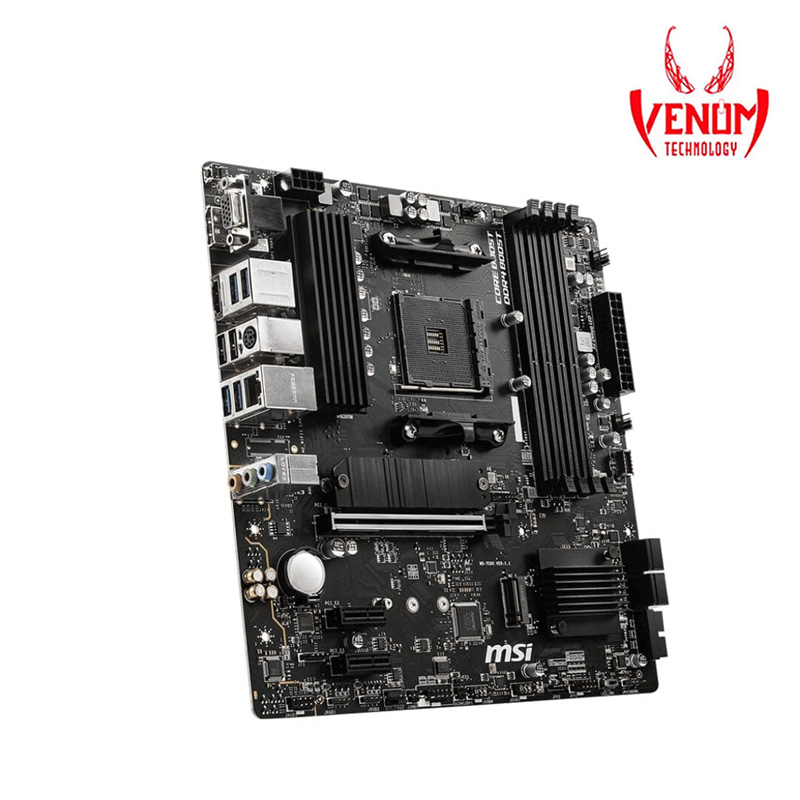

MSI B550M PRO-VDH – AM4 B550 mATX Motherboard

The MSI B550M PRO-VDH is a reliable Micro-ATX motherboard built for AMD Ryzen systems. Based on the B550 chipset, it offers a solid balance of performance, connectivity, and upgrade flexibility, making it ideal for budget to mid-range builds.

AMD Ryzen Compatibility

• Socket: AM4
• Chipset: AMD B550
• Supports 3rd Gen AMD Ryzen processors
• Compatible with newer Ryzen CPUs via BIOS update

Perfect for CPUs like Ryzen 3000 and select Ryzen 5000 series processors.

Memory Support

• 4× DDR4 DIMM slots
• Dual-channel memory architecture
• Supports up to 128GB RAM
• Memory speeds up to 4400+ MHz (OC)

Delivers stable and high-speed memory performance for gaming and multitasking.

Expansion & Storage

• 1× PCIe x16 slot (Gen4 / Gen3 depending on CPU)
• 2× PCIe x1 slots
• 2× M.2 slots for NVMe SSDs
• 4× SATA III ports
• RAID support (0 / 1 / 10)

Provides flexibility for storage upgrades and GPU installation.

Connectivity & Ports

• LAN: Realtek Gigabit Ethernet
• USB Ports:
  • Front: USB 3.2 Gen1 Type-C + Type-A
  • Rear: 4× USB 3.2 Gen1 + 2× USB 2.0
• Display Outputs: HDMI, DisplayPort, VGA
• Audio: Realtek ALC892 / ALC897

Additional Features

• TPM header for security features
• Supports Windows 10 (64-bit)
• DirectX 12 support
• Micro-ATX form factor for compact builds

Ideal For

• Ryzen 3000 / 5000 budget gaming builds
• Office and home PCs
• Users upgrading from older AM4 platforms
• Systems using or planning to add a GPU
