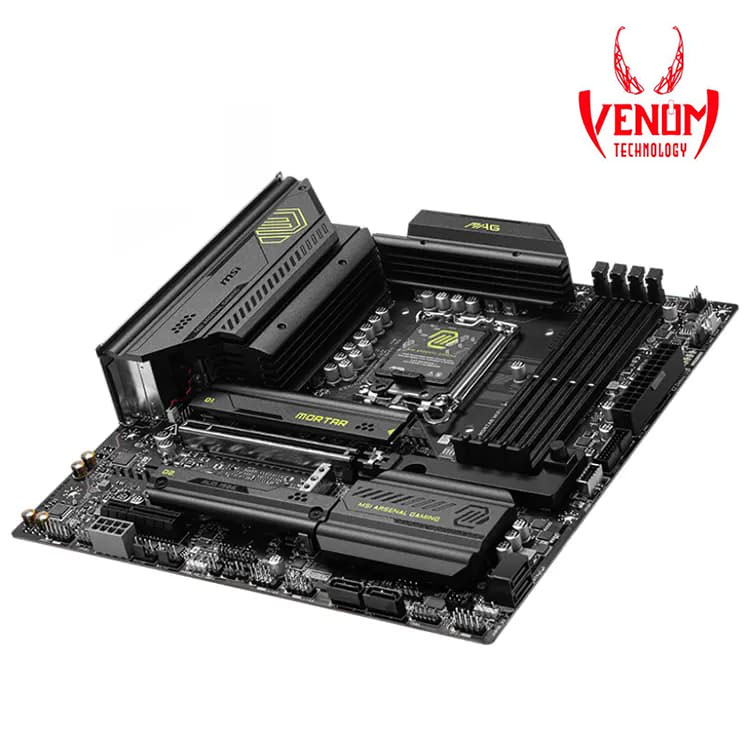

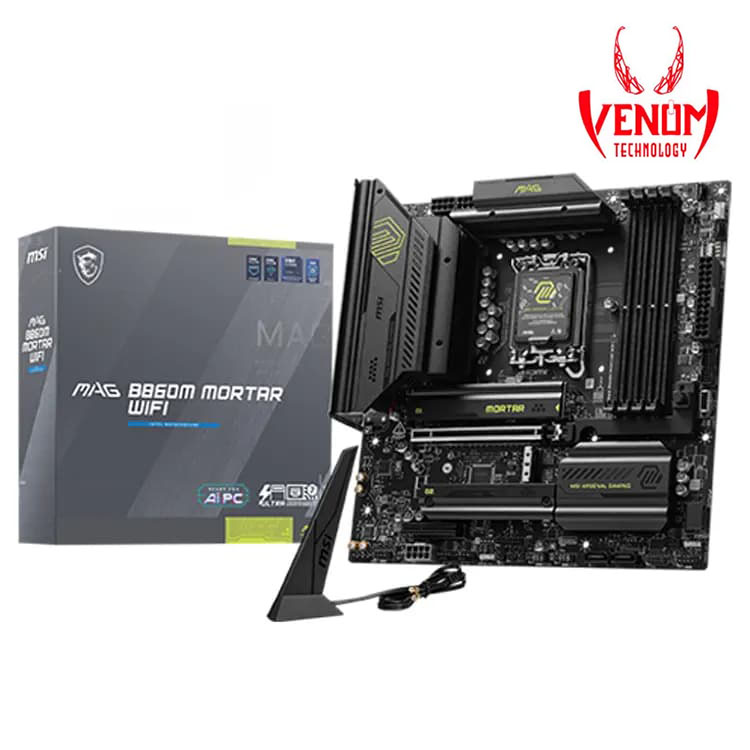

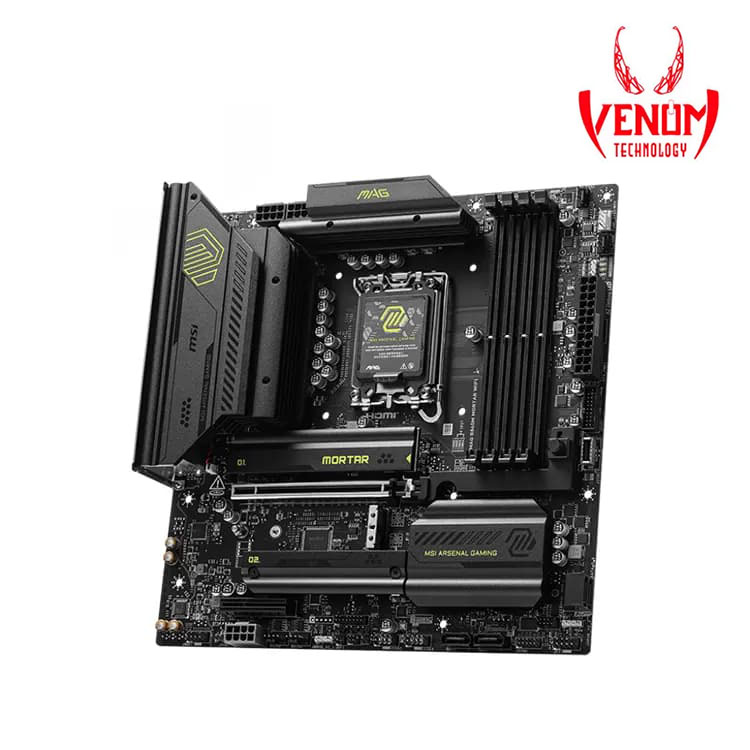

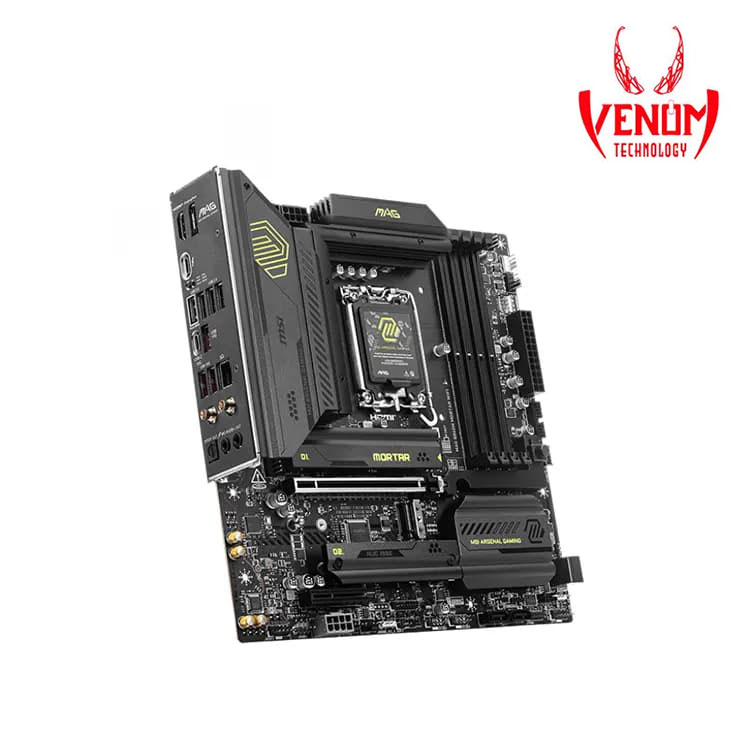

MSI MAG B860M MORTAR WIFI (LGA 1851, mATX) Gaming Motherboard

The MSI MAG B860M MORTAR WIFI is a high-performance Intel LGA 1851 motherboard built for gamers, creators, and professionals who need stability, durability, and future-ready features. Powered by the Intel B860 chipset, this micro-ATX motherboard supports the latest Intel® Core™ Ultra Series 2 processors, delivering exceptional speed and efficiency for gaming, multitasking, and AI workloads.

With support for DDR5 memory up to 256GB and speeds of 9200+ MT/s (OC), PCIe 5.0 graphics cards, and triple M.2 Gen5/Gen4 slots, the MAG B860M MORTAR WIFI provides the foundation for next-generation PC builds.

Key Features

High-Speed Performance

• Compatible with Intel Core Ultra Series 2 processors on the LGA 1851 socket

• 4x DDR5 DIMM slots, dual-channel support, maximum 256GB, up to 9200+ MT/s (OC)

• 1x PCIe 5.0 x16 slot for the latest GPUs

• 3x M.2 slots (PCIe 5.0/4.0) and 4x SATA 6Gb/s with RAID 0, 1, 5, 10 support

Next-Generation Connectivity

• Intel® Killer™ BE1750x Wi-Fi 7 and Bluetooth® 5.4

• Intel® Killer™ E5000 5Gbps LAN for ultra-low latency networking

• Thunderbolt™ 4 port with 40Gbps bandwidth and DisplayPort over USB-C

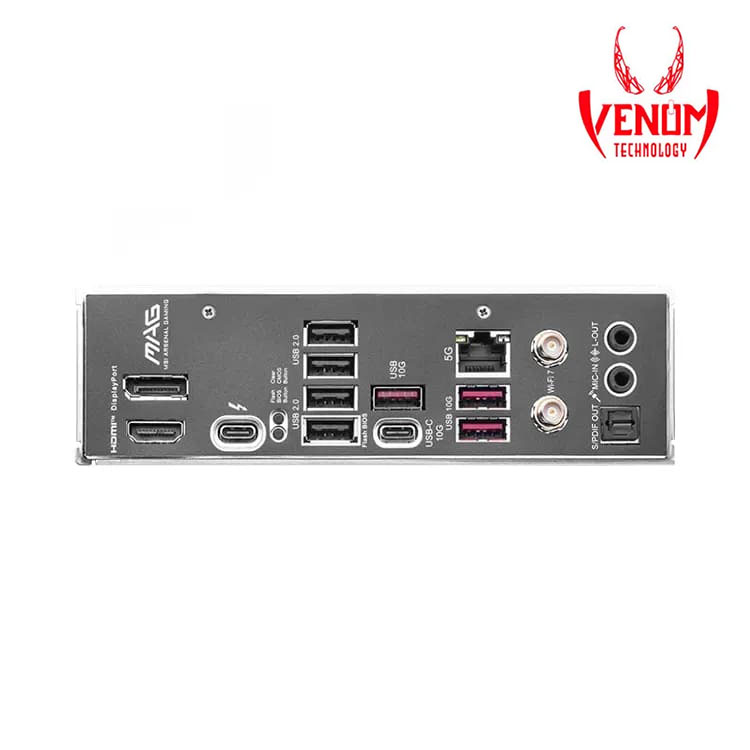

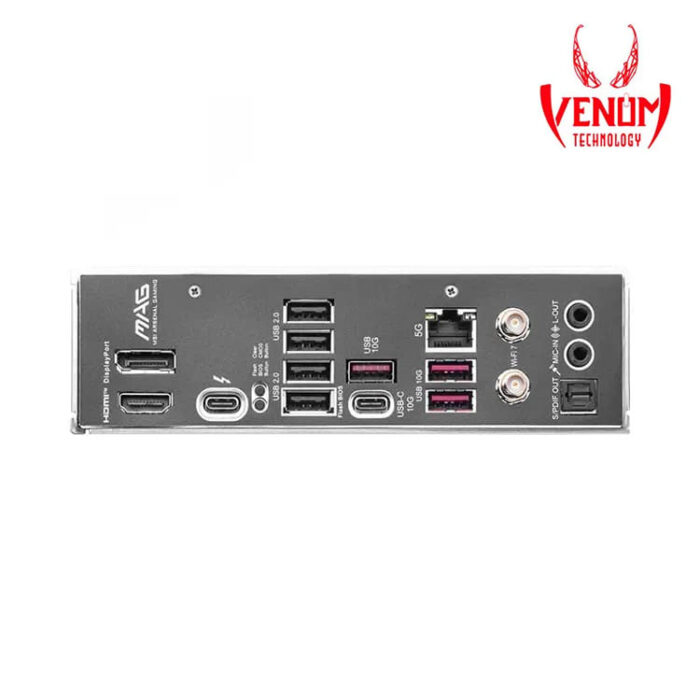

• Rear USB ports: 4x USB 2.0, 3x USB 10Gbps Type-A, 1x USB 10Gbps Type-C

• Front USB ports: 4x USB 2.0, 2x USB 5Gbps Type-A, 1x USB 10Gbps Type-C

Gaming and AI Enhancements

• AI Engine automatically optimizes applications for improved performance

• AI LAN Manager reduces lag and improves online gaming stability

• Frozr AI Cooling adjusts fan speed for efficient and quiet cooling

• AI Boost enhances NPU performance for faster AI computing tasks

Audio and Visual Experience

• Realtek® ALC897 7.1-Channel HD Audio Codec with S/PDIF output

• HDMI™ 2.1 (8K @ 60Hz), DisplayPort 1.4 (4K @ 60Hz), Thunderbolt™ 4 USB-C (4K @ 120Hz / 8K @ 60Hz)

DIY-Friendly Design

• EZ Debug LEDs and EZ Memory Detection LED for easy troubleshooting

• Reinforced power connectors (ATX_PWR, CPU_PWR, PCIE_PWR)

• Multiple RGB headers for customizable lighting setups

Why Choose the MSI MAG B860M MORTAR WIFI?

The MSI MAG B860M MORTAR WIFI combines cutting-edge performance, rock-solid stability, and DIY-friendly features. With Wi-Fi 7, Thunderbolt 4, PCIe 5.0, DDR5 memory support, and advanced AI optimizations, this motherboard is ideal for building a gaming PC, content creation system, or AI-powered workstation.
